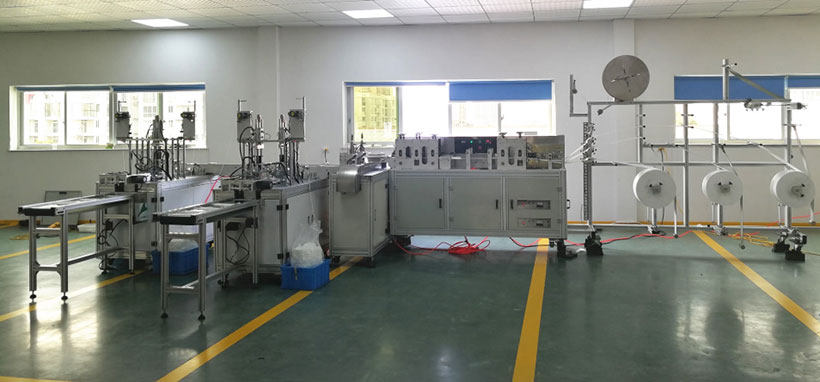

MK-A Fully automatic flat mask making machine

Summary of the equipment：

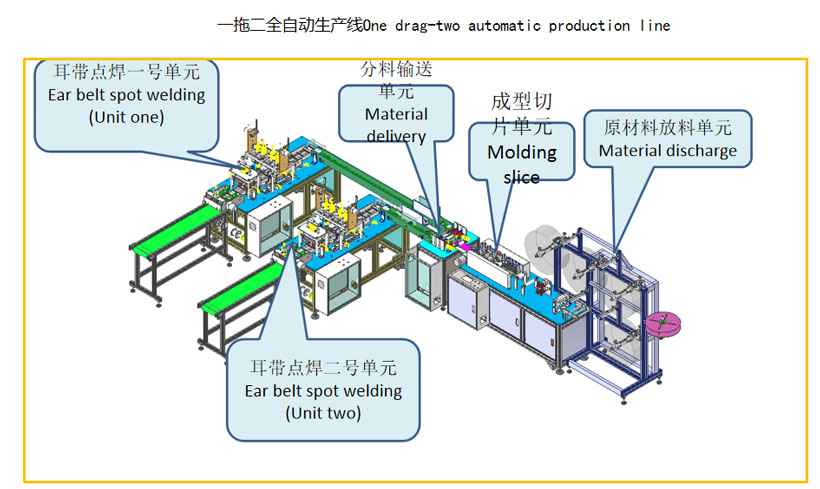

This machine is mainly used for automatic forming of plane mask: the whole roll of cloth is driven by roller after being unrolled, and the cloth is folded and wrapped automatically.The nose bridge strip is rolled up for traction and unrolled. After cutting with a fixed length, it is imported into the edge cloth. The two sides are welded to the seal by ultrasonic welding.The mask was transported to two mask ear belt welding stations by the assembly line, and the mask was finally formed by ultrasonic welding.After the mask is made, it is transported to the flat belt line through the assembly line for collection.

Technical parameters:

 Electric component list:

Products：

Material list：

Material cost list for flat Mask

Item name	Ear band	Melt-blown Fabric	Non woven fabric	Non woven fabric	Nose wire
Specification	Thickness :30 g Width :20mm	Thickness :20g  Width :175mm	Thickness :20 g  Width: 175mm	Thickness :25 g  Width : 195mm	Thickness :1 mm Width: 3 mm  .
Consumption	3500pcs/KG	2000pcs/KG	1600pcs/ KG	1500pcs/ KG	3000psc/KG
Probably Price	10-12USD/KG	55-60USD/KG(Civil Standard) 58-65USD/KG (Medical standard)	2.3-3 USD/KG	2.3-3 USD/KG	4.5-5 USD/KG
HS CODE	5607500000	5603919000	5603919000	5603919000	3916909000

 The above prices are for reference only

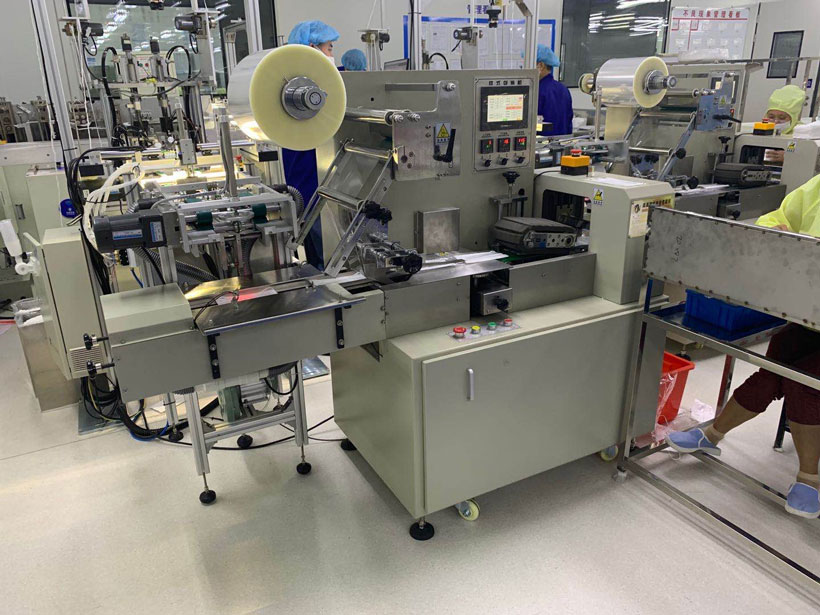

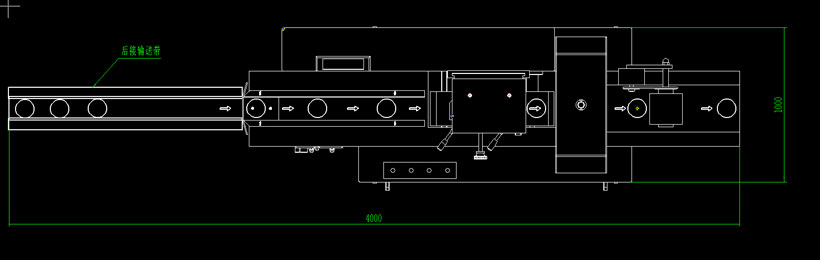

KZBZ-300A Automatic Flat Mask Packing Machine
（Connect to flat mask machine）

Technical parameter：

Main performance and characteristics：

1.Compact structure, stable performance and simple operation.
2.Controlled by three servo motors, the bag length is set and cut immediately, no need to run one step more,saving time and film.
3.Fault self-diagnosis function, clear fault display.
4.High-sensitivity photoelectric eye tracking, makes the sealing and cutting position more accurate.
5.Temperature is controled by independent PID,better suitable for various materials.
6.Positioning stop function, no stick film to the knife and no waste film.
7.Simple rotation system, more reliable work and more convenient maintenance.
8.All controls are realized by software, which is convenient for function adjustment and technology upgrade, and never lags behind.

Electric component list：

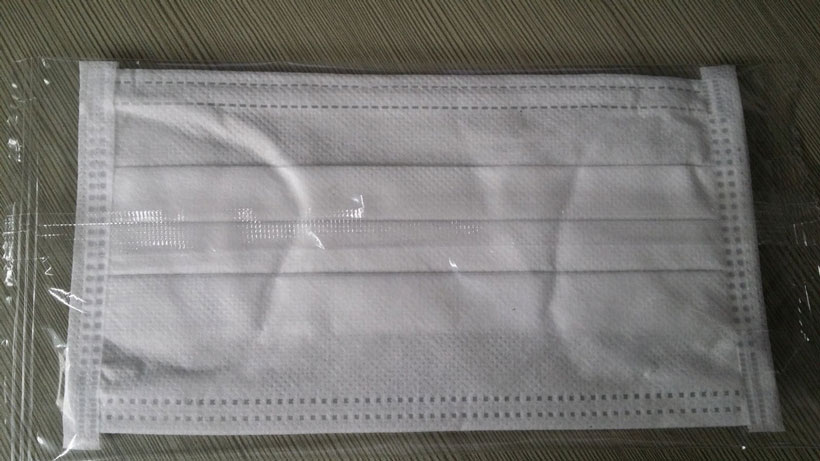

Packed mask photo
